Fluorescence microscopy has become an indispensable tool in modern biological and medical research. It allows scientists to visualize and study cellular and molecular processes with incredible detail and precision. A key component in this technology is the filter set, particularly the single dye filter set, which plays a vital role in capturing clear and accurate images.
What is a Single Dye Filter set?
A single dye filter set is a collection of optical filters designed to isolate the specific fluorescence signal of one dye or fluorophore. In fluorescence microscopy, dyes are used to label molecules within a sample. When illuminated with light of a specific wavelength, these dyes emit light at a different, typically longer wavelength. The single dye filter set ensures that only the emission from the target dye is detected, filtering out any unwanted light from other sources, including the excitation light.

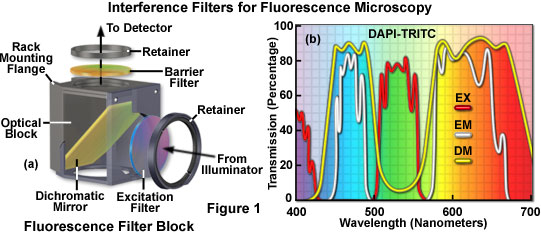

Components of a Single Dye Filter set
A typical single dye filter set includes three main components:
- Excitation Filter: This filter selects the wavelength of light that will excite the dye. For example, if you are working with a dye that absorbs blue light and emits green light, the excitation filter will only allow blue light to pass through.
- Dichroic Mirror: This optical component reflects the excitation light towards the sample while allowing the emitted light to pass through to the detector. The dichroic mirror is designed to have a sharp cutoff between the excitation and emission wavelengths, ensuring minimal overlap.
- Emission Filter: Positioned between the sample and the detector, this filter allows only the emitted light of the specific wavelength to reach the detector, ensuring that the image captured corresponds solely to the fluorescence signal of the dye.
Why Single Dye Filter sets Matter
The precision of single dye filter sets is critical in obtaining high-quality fluorescence images. Here are some reasons why:
- Reduced Background Noise: By isolating the specific emission wavelength of the dye, single dye filter sets significantly reduce background noise from other sources of light. This ensures that the captured image is as clear as possible, with high contrast between the fluorescent signal and the background.
- Accurate Quantification: In many experiments, especially in quantitative fluorescence microscopy, it is essential to measure the intensity of the fluorescence signal accurately. Single dye filter sets allow for precise quantification by ensuring that only the signal from the dye is detected, free from interference by other wavelengths.
- Versatility in Multiplexing: While single dye filter sets are designed for individual dyes, they also enable multiplexing when used in combination with other filter sets. By sequentially capturing images using different filter sets, researchers can study multiple targets within the same sample, each labeled with a different dye.
Choosing the Right Single Dye Filter set
Selecting the appropriate single dye filter set depends on several factors, including the properties of the dye, the specific application, and the microscope setup. It is crucial to match the excitation and emission filters to the spectral properties of the dye to achieve optimal performance.
Manufacturers often provide filter sets tailored to popular fluorophores like FITC, DAPI, and Texas Red. Custom filter sets can also be designed for more specialized dyes or unique applications. Shop here
